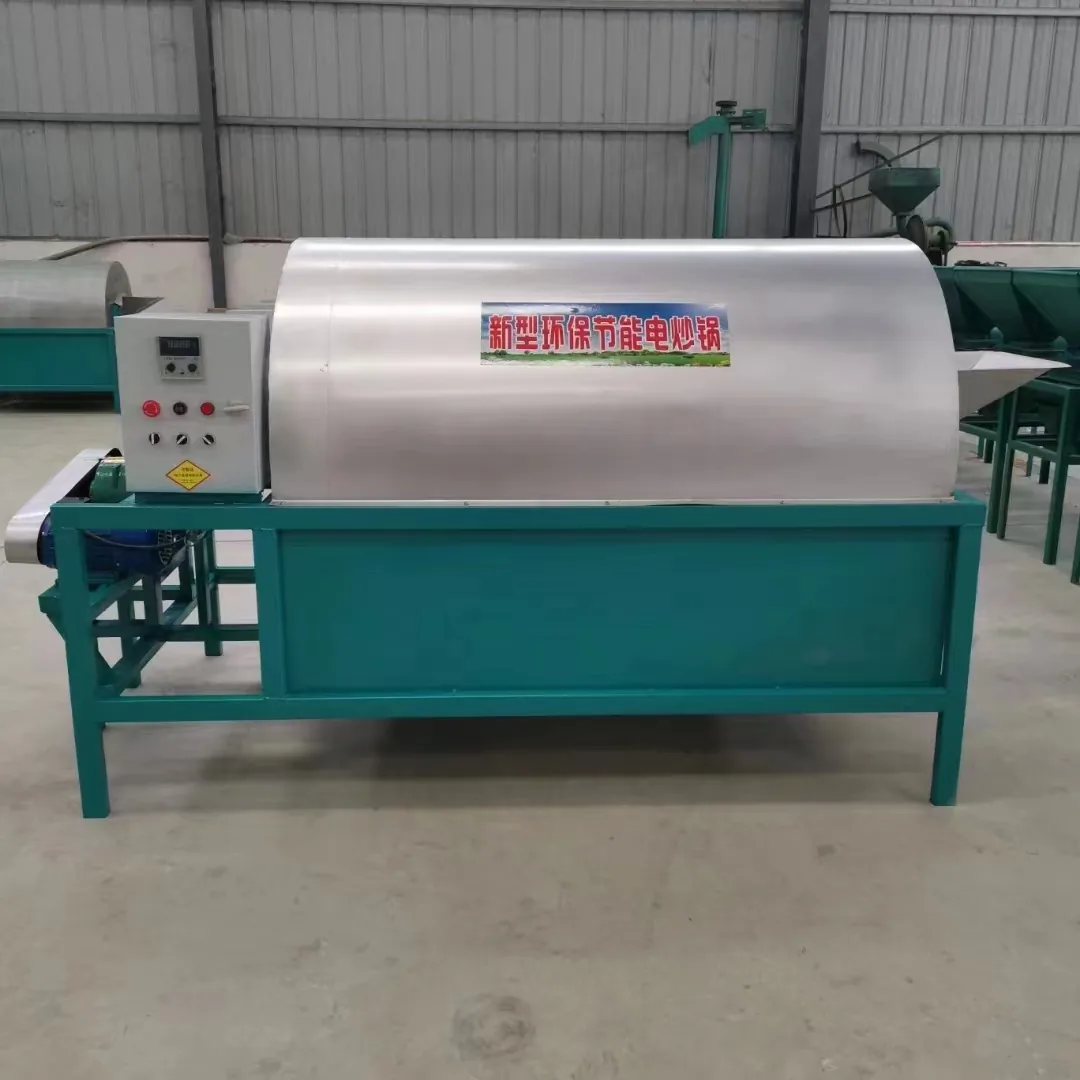

Automatic Electromagnetic Drum Roaster
Model: 100# / 130#
Automatic Electromagnetic Drum Roaster: Specifications
| Models | 100# / 130# / Thickened 130# |
|---|---|
| Capacity per Batch | 160–220 kg / 200–350 kg / 360–450 kg |
| Drum Size | 70×98 cm / 73×130 cm / 80×130 cm |
| Motor | 0.75 kW / 1.1 kW / 1.5 kW (three-phase 4-pole) |
| Heating Power | 18 kW / 27 kW / 27 kW (electromagnetic) |
| Heating Method | Electromagnetic, flameless, sealed drum |
| Control | Independent temperature control with automatic shut-off |
| MOQ | 1 Set |
Automatic Electromagnetic Drum Roaster: Recommended Oil Seeds
These seeds are particularly recommended for this machine model. However, it can also process most other oil seeds with excellent results. Contact us if you have questions about a specific seed.
Automatic Electromagnetic Drum Roaster: Description
Overview
This drum roaster is used to roast oilseeds before hot pressing, the stage that brings out aroma and lowers moisture for a higher yield. It is built as a frame, feed hopper, rotating drum and flame hood. The motor drives the drum through a V-belt and chain wheel, turning the seeds continuously, while electromagnetic heating supplies adjustable flameless heat. One-button automatic control makes the daily routine simple.
Three standard sizes are available — the 100#, the 130# and a thickened 130# — covering batches from roughly 160 kg up to 450 kg. Other sizes can be made to order to match your press throughput.
Key Advantages
- Even roasting, no scorching — drum rotation plus flameless heating gives a uniform roast and protects oil flavour and colour
- Three standard capacities — 160–220 kg (100#), 200–350 kg (130#) or 360–450 kg (thickened 130#) per batch
- Automatic one-button operation — set temperature and time, the machine runs the roast and shuts off by itself
- Flameless and safe — electromagnetic heating removes the fire risk of gas or coal roasters and keeps the workshop cleaner
- Sealed drum — heats quickly and keeps heat inside for energy efficiency
- Custom sizes available — drum dimensions and heating power adjusted to match your production line
Structure & Build
The enclosed drum heats quickly and keeps heat inside, and the constant turning means every seed is heated evenly — no burnt bottom layer and no half-roasted top layer, which is exactly what good pressing oil needs. Heating power and roasting temperature are set separately and held automatically, with shut-off when the set point is reached.
Applications & Suitable Materials
- Hot-press oil lines — the standard pre-press roasting stage for sesame, peanut, rapeseed, sunflower, flaxseed and camellia
- Aromatic oils — where roast aroma is a key selling point
- Nuts, grains and food materials — versatile roasting beyond oilseeds
Why Choose Our Oil Press Equipment
- Consistent batch after batch — sealed electromagnetic drum gives repeatable results without a skilled operator
- Energy saving — flameless electromagnetic heating is efficient and clean
- Factory-direct pricing — competitive roasting equipment straight from the manufacturer
- Full support — English manual, video guidance, spare parts and optional overseas installation
